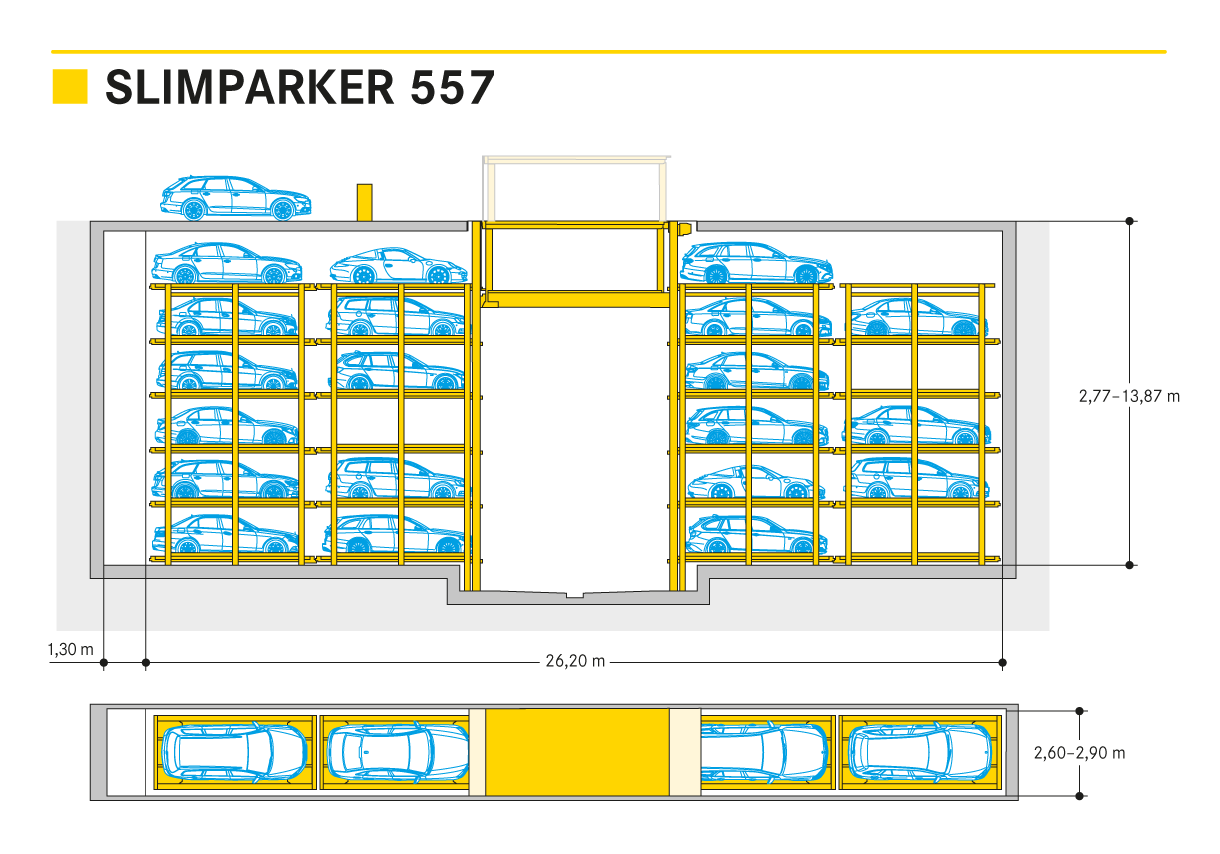

SLIMPARKER 557 SHAFT

The Magical - up to 6 parking level are hidden underground and providing up to 23 parking places.

When there is more space in length than in width, the news Slimparker 557 shows off its merits. This slim system merely requires an installation width of 2.60 m in narrow broad strips between buildings. It has been specially designed for the area between the set-back lines and building. Vehicles can be stacked up to 6 levels deep in front of, and behind the lift. The ground level lid can be furnished with the most varying coverings and can be camouflaged to suit its surroundings.

Specifications

  • Platform load 2,000 kg and 2,600 kg
  • Various car heights and lengths
  • Automatic parking system for up to 23 cars
  • Very small floor plan area and very slim construction
  • No space-intensive ramps or driveways
  • Below grade arrangement especially designed for the area between the set-back line and building
  • Can be driven over when entrance is lowered
  • 2- up to 4-row arrangement behind each other
  • For multi-row arrangement an empty space is required
  • Top platform can be covered individually based on customs wishes to suit to the surrounding
